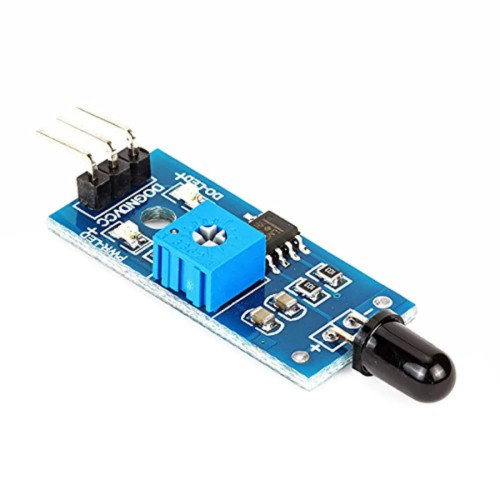

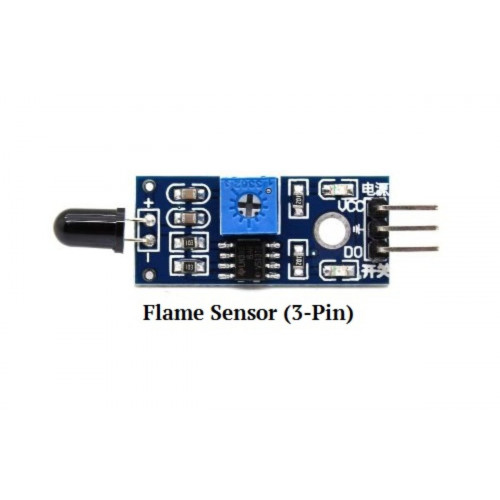

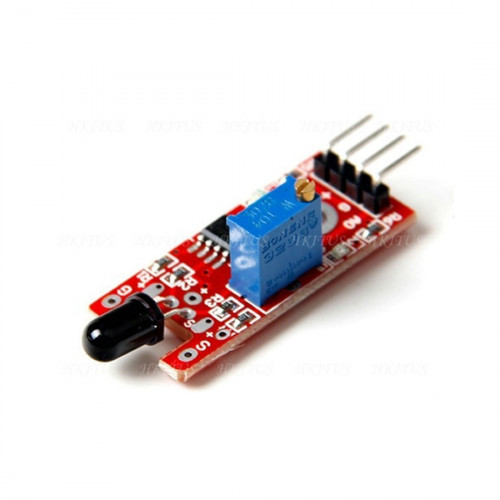

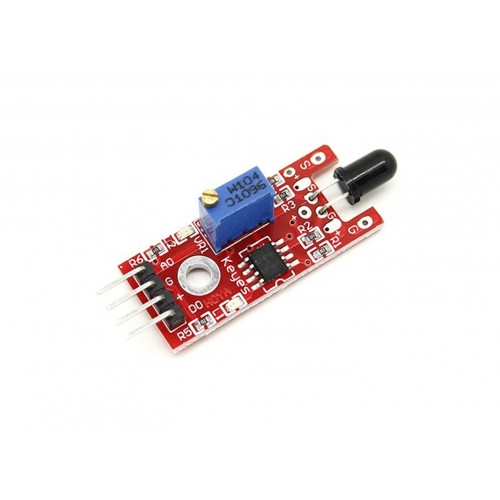

Fire/Flame Sensor Module - Infrared Detection 3pin module (IR)

IR Sensor Mdoule (Flame sensor)

The Fire/Flame Sensor Module is an infrared-based detection module designed for flame monitoring and fire detection applications. Using an IR receiver, this module can detect flames or light sources in the 760nm to 1100nm wavelength range. It provides a digital output signal when a flame is detected, making it ideal for fire alarm systems, robotics, and safety applications. With a compact 3-pin interface (VCC, GND, DO), it is easy to integrate with microcontrollers like Arduino, Raspberry Pi, and ESP32.

Key Features & Benefits

• Infrared Flame Detection: Detects flames and light sources in the 760nm-1100nm range.
• Fast & Reliable Response: Provides a digital output when a flame is detected.
• Adjustable Sensitivity: Built-in potentiometer for sensitivity adjustments.
• 3-Pin Interface: Simple connection with VCC, GND, and DO for easy integration.
• Wide Detection Angle: Detects flames within a 60-degree angle for enhanced coverage.
• Compact & Lightweight: Weighs only 3g with a small form factor for embedded applications.

Specifications

• Detection Wavelength: 760nm – 1100nm
• Operating Voltage: 3.3V – 5V DC
• Output Type: Digital (DO)
• Detection Angle: 60°
• No. of Pins: 3 (VCC, GND, DO)
• Mounting Hole: 3mm
• Dimensions: 32mm (L) × 14mm (W)
• Weight: 3g
• Operating Temperature: -25°C to 85°C

Applications

• Fire and flame detection systems
• Smart home safety and fire alarms
• Industrial safety monitoring
• Robotics and automation
• Gas leak detection systems

Package Includes:

1 x Flame Sensor Module (3pin)

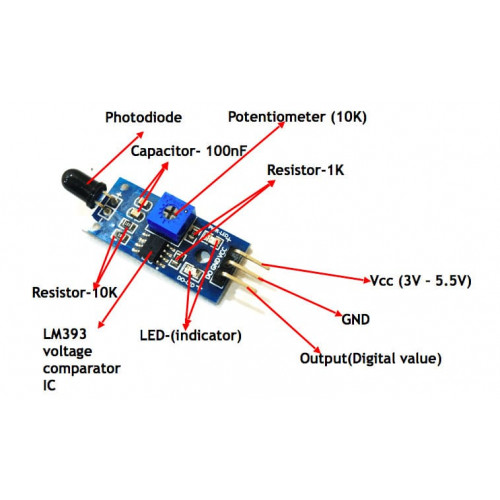

Pin Connections:

• VCC  connect to 3.3V-5V
• GND  connect to GND
• DO: Output connector（0 or 1）

*Image shown is a representation only.
