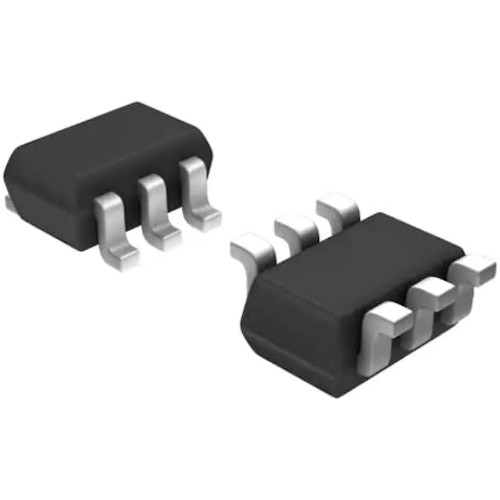

DW01A Lithium Battery Protection IC - (SOT23-6 Package) SMD

The DW01A Lithium Battery Protection IC is a reliable solution for safeguarding rechargeable lithium-ion and lithium-polymer batteries. Designed to enhance battery safety and performance, this IC prevents overcharge, overdischarge, and overcurrent conditions, ensuring long-lasting and efficient battery operation.

Housed in a compact SOT23-6 package, the DW01A is ideal for space-constrained applications such as portable electronics, wearables, and IoT devices. With precise monitoring and robust protection features, it offers a dependable choice for modern battery-powered products.

Key Features:

• Overcharge Protection: Ensures battery safety by preventing voltage levels from exceeding the threshold.
• Overdischarge Protection: Protects against excessive discharge, prolonging battery life.
• Overcurrent Protection: Prevents damage caused by excessive current during operation or short circuits.
• Compact Design: Small SOT23-6 package perfect for compact devices.
• Low Power Consumption: Minimal power usage for efficient energy management.

Applications:

• Smartphones and tablets
• Wearable devices
• Power banks
• IoT devices
• Electric tools

Specifications:

• Overcharge Detection Voltage: 4.3V ± 0.05V
• Overdischarge Detection Voltage: 2.4V ± 0.1V
• Overcurrent Protection: 1A–3A (adjustable based on external components)
• Operating Temperature Range: -40°C to 85°C

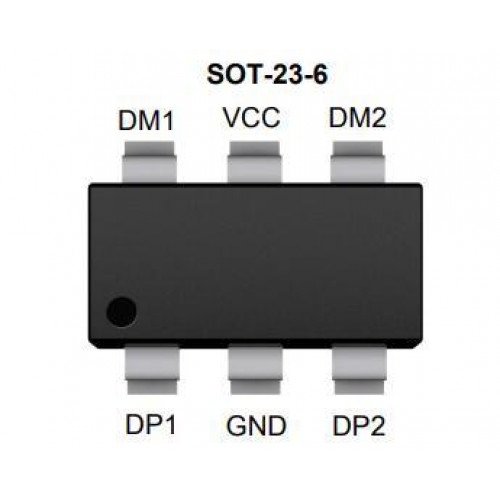

• Package: SOT23-6
