Atmega328P - U Microcontroller [Original]

Qty

Atmega328P - U - 28Pins 20MHz 32kb 8-bit Microcontroller

Features

High-performance, Low-power AVR 8-bit Microcontroller
Advanced RISC Architecture
- 131 Powerful Instructions - Most Single Clock Cycle Execution
- 32 x 8 General Purpose Working Registers
- Up to 6 MIPS Throughput at 16MHz
- Fully Static Operation
- On-chip 2-cycle Multiplier
Nonvolatile Program and Data Memories
- 32k Bytes of In-System Self-Programmable Flash
- Optional Boot Code Section with Independent Lock Bits
- 1K Bytes EEPROM
- Programming Lock for Software Security
Peripheral Features
- On-chip Analog Comparator
- Programmable Watchdog Timer with Seperate On-chip Oscillator
- Master/Slave SPI Serial Interface
- Two 8-bit Timer/Counters with Separate Prescalar, Compare
- One 16-bit TImer/Counter with Seperate Prescaler, Compare and Capture mode
- Real TIme Counter with Seperate Oscillator
- Six PWM Channels
- 8-channel, 10-bit ADC
- Byte-oriented Two-wire Serial Interface
- Programmable Serial USART
Special Mircocontroller Features
- Power-on Reset and Programmable Brown-out Detection
- Internal Calibrated RC Oscillator
- External and Internal Interrupt Sources
- Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby
I/O and Packages
- 23 Programmable I/O Lines
- 28-pin PDIP, 32-lead TQFP, and 28-pad MLF
Operating Voltages
- 1.8-5.5V for ATmega328P
Speed Grades
- 0-20 MHz for ATmega328P
Power Consumption at 1 Mhz, 1.8V, 25 °C
- Active: 0.2mA
- Power-down Mode: 0.1µA

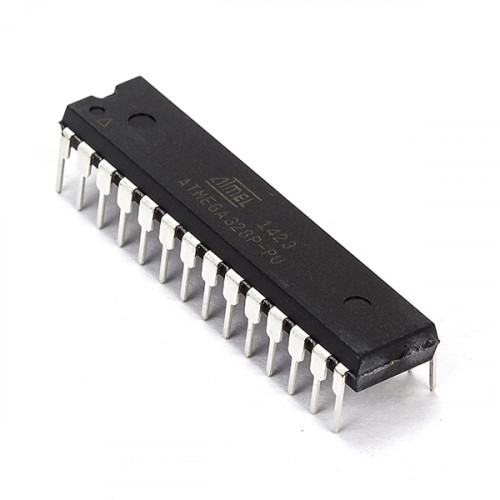

*Image shown is a representation only.

Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!

₹192.00 (+ GST)
